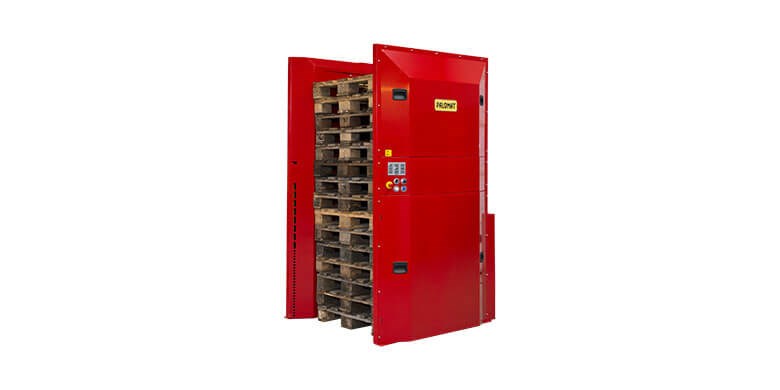

Semi-automatic stacking and destacking.
Choose a PALOMAT® 5 if you plan to both stack and destack more than one pallet at a time – up to 5 together and wish to use only electricity as the power source.
The PALOMAT® 5 is completely AC operated.
You can place it anywhere with an available AC 230V outlet. This will immediately give you efficient and more flexible pallet handling – if your pallet flow changes, it is easy to reposition the PALOMAT® to a new location.

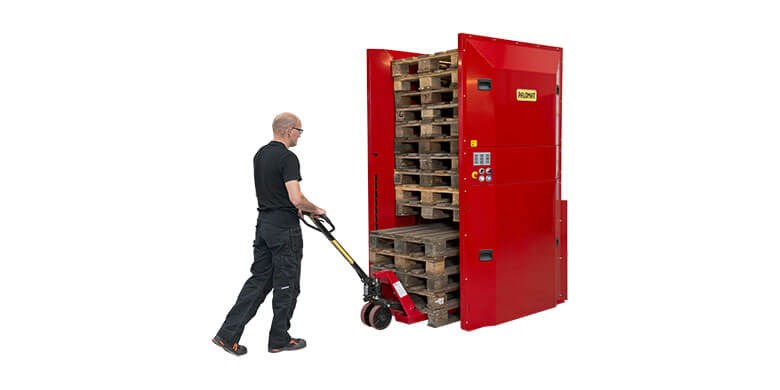

Pallets can be inserted and picked up using a hand pallet truck, electric stacker or a full-size forklift truck. All pallets are handled at floor level.

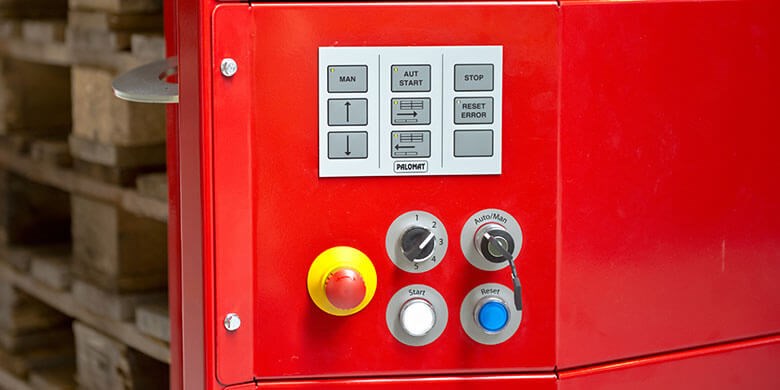

The PALOMAT® range ensures efficient and safe pallet flow without physical strain on your staff. With the use of a simple pallet truck, the pallets are placed into the dispenser where they are then efficiently and automatically stacked. A user-friendly touch panel on the side is used to access various functions.
Article no. 170001
- Pallet size L x W x H (mm): 1200x800x150
- Lifting capacity/No. of pallets: 500 kg/ 15
- Machine dimensions L x W x H (mm): 1490x1360x2360*
Article no. 170002
- Pallet size L x W x H (mm): 1200x1000x150
- Lifting capacity/No. of pallets: 500 kg/ 15
- Machine dimensions L x W x H (mm): 1490x1560x2360*
Article no. 170101
- Pallet size L x W x H (mm): 1200x800x150
- Lifting capacity/No. of pallets: 700 kg/ 25
- Machine dimensions L x W x H (mm): 1490x1360x3865**
Article no. 170102
- Pallet size L x W x H (mm): 1200x1000x150
- Lifting capacity/No. of pallets: 700 kg/ 25
- Machine dimensions L x W x H (mm): 1490x1560x3865**
* Incl. safety frame for 15 pallets
** Incl. safety frame for 25 pallets with gate for handling more than 15 pallets.
