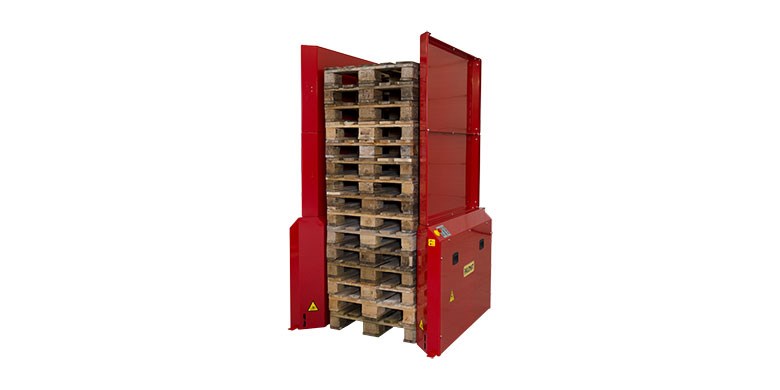

Fully automatic stacking and destacking.
Choose a PALOMAT® Flexomatic if you plan to both stack and destack single pallets and wish to use compressed air + electricity as the power source.
PALOMAT®Flexomatic operates on compressed air and requires electricity for control of the machine.

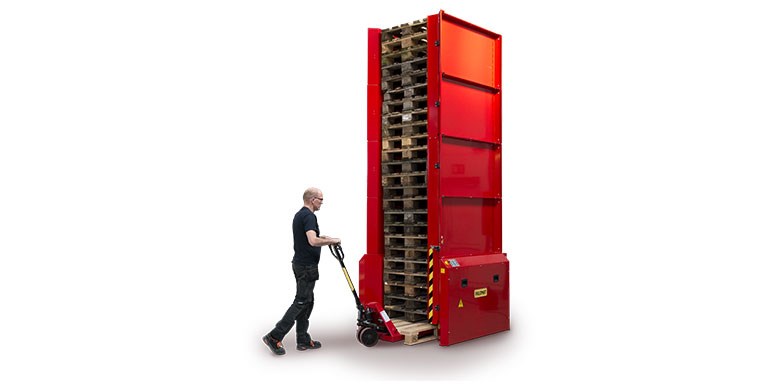

Pallets can be inserted and picked up using a hand pallet truck, electric stacker or a full-size forklift truck. All pallets are handled at floor level.
The PALOMAT® range ensures efficient and safe pallet flow without physical strain on your staff. With the use of a simple pallet truck, the pallets are placed into the dispenser where they are then efficiently and automatically stacked. A user-friendly touch panel on the side is used to access various functions.
Article no. 150001
- Pallet size L x W x H (mm): 1200x800x150
- Lifting capacity/No. of pallets: 500 kg/ 15
- Machine dimensions L x W x H (mm): 1520x1340x955/2350*
Article no. 150002
- Pallet size L x W x H (mm): 1200x1000x150
- Lifting capacity/No. of pallets: 500 kg/ 15
- Machine dimensions L x W x H (mm): 1520x1540x955/2350*
Article no. 150101
- Pallet size L x W x H (mm): 1200x800x150
- Lifting capacity/No. of pallets: 800 kg/ 25
- Machine dimensions L x W x H (mm): 1520x1340x3750**
Article no. 150102
- Pallet size L x W x H (mm): 1200x1000x150
- Lifting capacity/No. of pallets: 800 kg/ 25
- Machine dimensions L x W x H (mm): 1520x1540x3750**
* Incl. safety frame for 15 pallets
** Incl. safety frame for 25 pallets with gate for handling more than 15 pallets.
